Features

  • Rated for 3000 PSI.
  • High strength carbon steel tube.
  • Internally threaded ductile iron end caps with buttress threads.
  • Lightweight aluminum piston for quick response.
  • Low leakage piston seal & wear bearings for broad fluid compatibility.
  • Stainless steel gas charge valve with a robust guard.
  • Standard paint: black enamel.

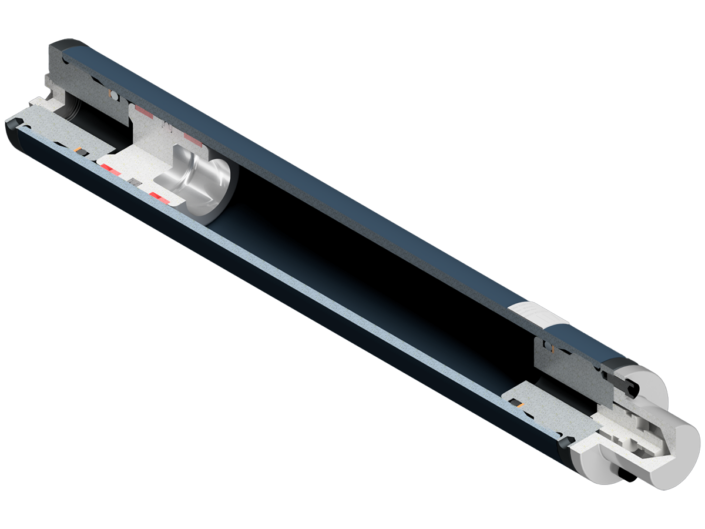

2.00″ Bore Hydraulic Piston Accumulator Diagram

Part Number Bore Fluid Volume (gal) Fluid Volume (in³) Gas Volume (gal) Gas Volume (in³) Port Length (inches) Seal Kit Request Quote
7202000200 2.00 0.13 28.88 0.13 30.10 #8 SAE 15.94 ASK-200 Request Quote
7202000400 2.00 0.25 57.75 0.26 58.98 #8 SAE 25.13 ASK-200 Request Quote

Customs available upon request.

Need Help Choosing the Right Piston Accumulator?

The right accumulator depends on more than bore size. Pressure rating, fluid volume, gas volume, port size, mounting, and seal compatibility all matter.

Reach out to our sales, we’ll help confirm the right hydraulic piston accumulator for your application.
