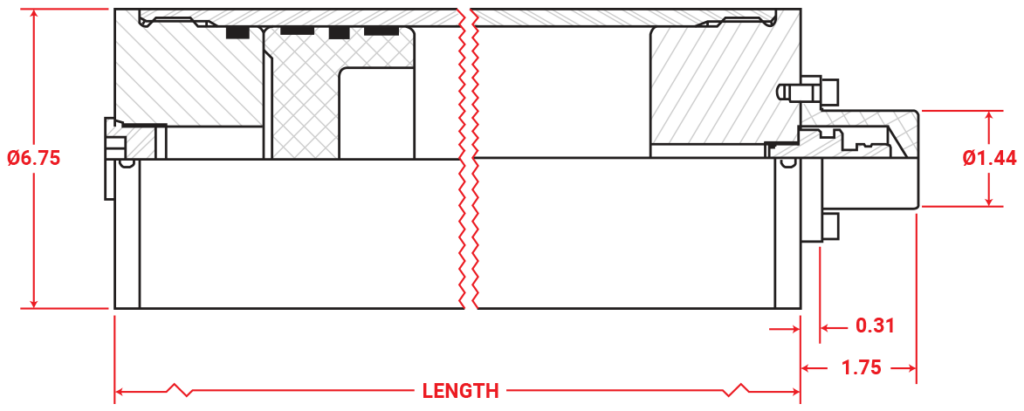

| Part Number | Bore | Fluid Volume (gal) | Fluid Volume (in³) | Gas Volume (gal) | Gas Volume (in³) | Port | Length (inches) | Seal Kit |
|---|---|---|---|---|---|---|---|---|

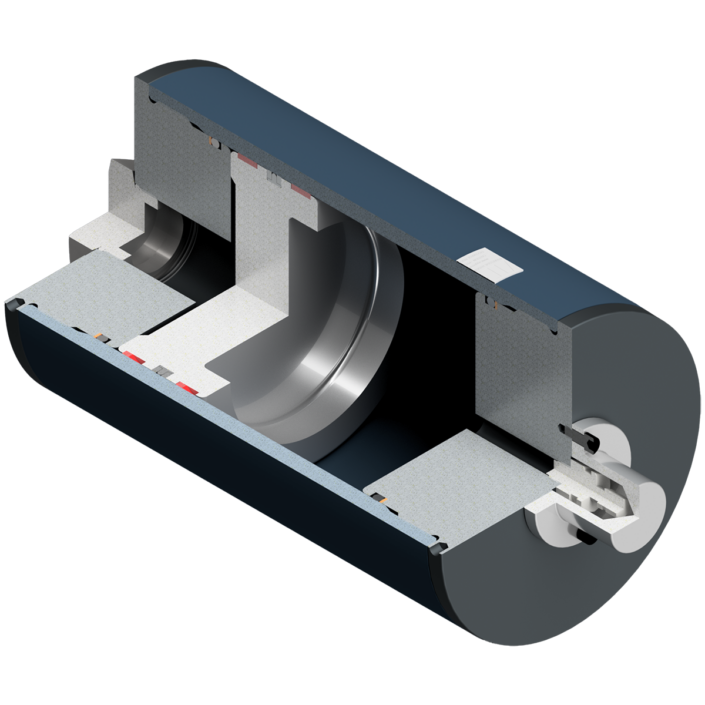

| 7206000800 | 6.00 | 0.50 | 115.50 | 0.55 | 127.43 | #24 SAE | 11.34 | ASK-600 |
| 7206001600 | 6.00 | 1.00 | 231.00 | 1.05 | 242.93 | #24 SAE | 15.41 | ASK-600 |
| 7206002400 | 6.00 | 1.50 | 346.50 | 1.55 | 358.43 | #24 SAE | 19.50 | ASK-600 |
| 7206004000 | 6.00 | 2.50 | 577.50 | 2.55 | 589.05 | #24 SAE | 27.67 | ASK-600 |
| 7206006400 | 6.00 | 4.00 | 924.00 | 4.05 | 935.93 | #24 SAE | 39.92 | ASK-600 |
| 7206008000 | 6.00 | 5.00 | 1155.00 | 5.05 | 1166.93 | #24 SAE | 48.09 | ASK-600 |
| 7206012000 | 6.00 | 7.50 | 1732.50 | 7.55 | 1744.43 | #24 SAE | 68.52 | ASK-600 |
| 7206016000 | 6.00 | 10.00 | 2310.00 | 10.05 | 2321.93 | #24 SAE | 88.94 | ASK-600 |
Customs available upon request.
The right accumulator depends on more than bore size. Pressure rating, fluid volume, gas volume, port size, mounting, and seal compatibility all matter.
Talk with our sales team before you quote or order. We’ll help confirm the right hydraulic piston accumulator for your application.
