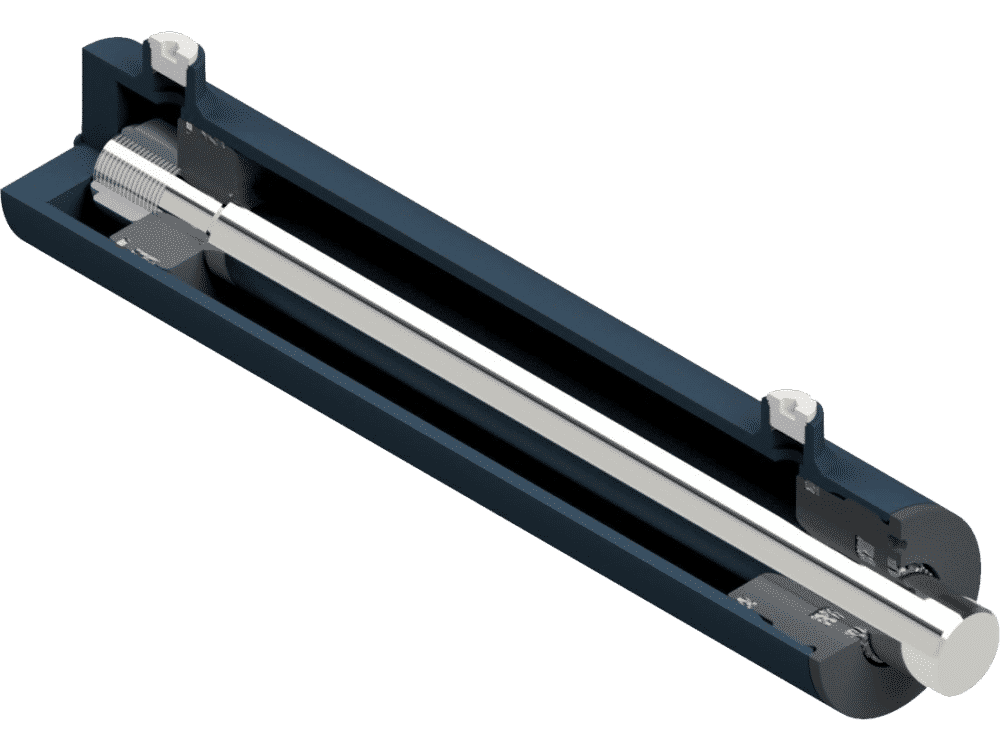

100 series cylinder rendering

Features

  • 2500 PSI Standard Duty Type
  • Cold-drawn (high impact) 75,000 min.yield D.O.M. tubing
  • Ground & polished, hard chrome plated rods (75,000 min. yield)
  • Welded style construction certified to A.W.S. B2.1
  • Internally threaded head design with buttress threads
  • Highest quality seal configurations compatible with petroleum-based fluids
  • Ductile iron head gland & piston
  • Piston utilizes wear bearings
  • Nylon inserted lock nut
  • Standard paint; black primer

Hydraulic Cylinder Measurement Chart

100 Series Cylinders diagram

Bore Rod A B F H I L Part #
1.50 .75 2.00 1.38 5.75 3.31 1.31 #4 104-**.**
1.00 2.00 1.50 6.00 3.56 1.31 #4 106-**.**
2.00 1.00 2.50 1.38 6.25 3.62 1.38 #6 110-**.**
1.12 2.50 1.50 6.25 3.62 1.38 #6 112-**.**
1.25 2.50 1.50 6.50 3.88 1.38 #6 114-**.**
2.50 1.25 3.00 1.50 6.50 3.62 1.62 #6 118-**.**
1.50 3.00 1.56 7.00 4.06 1.69 #6 120-**.**
3.00 1.25 3.50 1.56 7.00 4.00 1.75 #8 124-**.**
1.50 3.50 1.44 7.00 3.88 1.88 #8 126-**.**
1.75 3.50 1.44 7.00 3.88 1.88 #8 128-**.**
2.00 3.50 1.44 7.25 4.12 1.88 #8 130-**.**
3.50 1.50 4.00 1.56 7.25 4.00 2.00 #8 134-**.**
1.75 4.00 1.56 7.25 4.00 2.00 #8 136-**.**
2.00 4.00 1.56 7.25 4.00 2.00 #8 138-**.**
4.00 1.50 4.50 1.44 7.25 3.88 2.12 #8 142-**.**
1.75 4.50 1.50 7.50 3.94 2.31 #8 144-**.**
2.00 4.50 1.50 7.50 3.94 2.31 #8 146-**.**
2.50 4.50 1.50 7.75 4.19 2.31 #8 148-**.**
4.50 1.75 5.00 1.38 7.75 3.81 2.44 #8 152-**.**
2.00 5.00 1.38 7.75 3.81 2.44 #8 154-**.**
2.25 5.00 1.38 7.75 3.81 2.44 #8 156-**.**
5.00 2.00 5.62 1.50 8.25 3.94 2.81 #8 160-**.**
2.50 5.62 1.50 8.50 4.19 2.81 #8 162-**.**
3.00 5.62 1.50 8.50 4.19 2.81 #8 164-**.**

Pre-Engineered Cylinder Drawing Program

Instantly customize and print detailed prints of our 100 Series Pre-Engineered Cylinders.

Try It Now

Ordering Information

All Pre-engineered Cylinders are manufactured in the U.S.A. and are backed by the Aggressive Hydraulics Cylinder Warranty.

  • To complete part#; replace (**.**) with stroke required
  • Maximum allowable stroke length for a given model is dependent on the actual maximum operating pressure and compressive load. Buckling strength limit for a cylinder will be calculated at the time of initial order or upon customer request.
  • Other port sizes and locations are available upon request
  • Consult factory for longer stroke and or higher pressure applications
