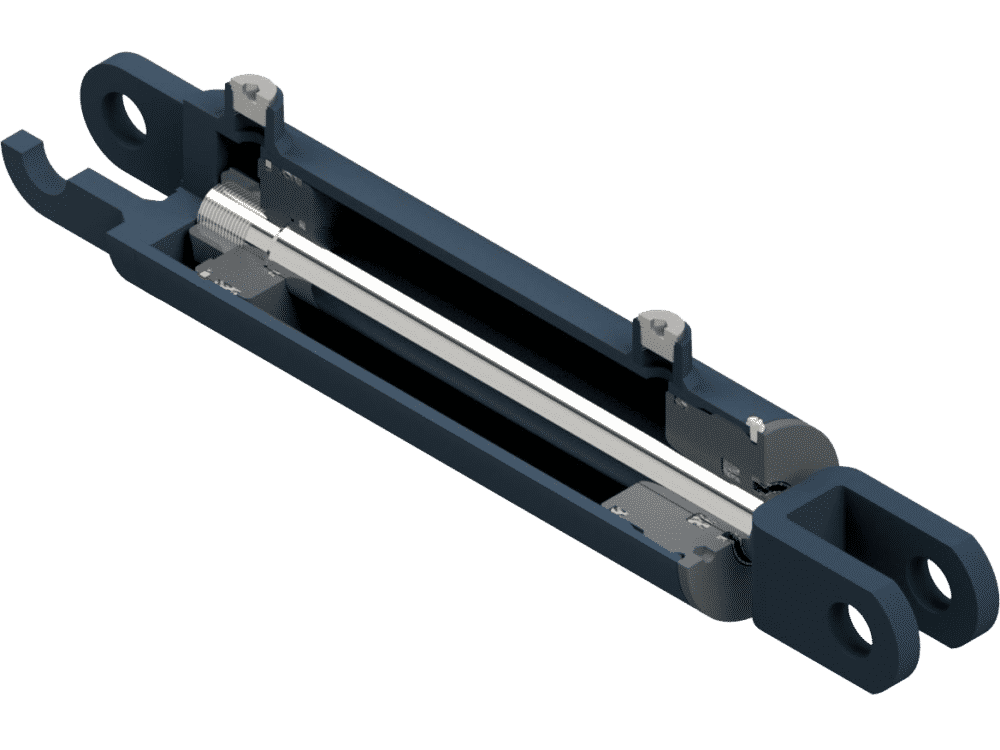

Features

  • 2500 PSI Standard Duty Type
  • Cold drawn (high impact) 75,000 min.yield D.O.M. tubing
  • Ground & polished, hard chrome plated rods (75,000 min. yield)
  • Welded style construction certified to A.W.S. B2.1
  • Internally threaded head design with buttress threads
  • Highest quality seal configurations compatible with petroleum base fluids
  • Ductile iron head gland & piston
  • Piston utilizes wear bearings
  • Nylon inserted lock nut
  • Standard paint; black primer

300 Series Cylinders Diagram

Bore Rod A B CD E F G H I J K L Part #
1.50 .75 2.00 3.00 .750 1.62 9.00 1.75 4.94 2.94 1.06 .38 #4 304-**.**
1.00 2.00 2.88 .750 1.62 9.00 1.75 4.94 2.94 1.06 .38 #4 306-**.**
2.00 1.00 2.50 3.38 1.00 2.00 10.25 2.00 5.62 3.38 1.25 .50 #6 310-**.**
1.12 2.50 3.50 1.00 2.00 10.25 2.00 5.62 3.38 1.25 .50 #6 312-**.**
1.25 2.50 3.25 1.00 2.00 10.25 2.00 5.62 3.38 1.25 .50 #6 314-**.**
2.50 1.25 3.00 3.25 1.00 2.00 10.25 2.00 5.38 3.62 1.25 .50 #6 318-**.**
1.50 3.00 3.06 1.00 2.00 10.25 2.00 5.56 3.44 1.25 .50 #6 320-**.**
3.00 1.25 3.50 3.06 1.00 2.00 10.25 2.00 5.50 3.50 1.25 .50 #8 324-**.**
1.50 3.50 3.06 1.00 2.00 10.25 2.00 5.50 3.50 1.25 .50 #8 326-**.**
1.75 3.50 3.06 1.00 2.00 10.25 2.00 5.50 3.50 1.25 .50 #8 328-**.**
2.00 3.50 3.06 1.00 2.00 10.25 2.00 5.75 3.25 1.25 .50 #8 330-**.**
3.50 1.50 4.00 3.06 1.00 2.00 10.25 2.00 5.50 3.50 1.25 .50 #8 334-**.**
1.75 4.00 3.06 1.00 2.00 10.25 2.00 5.50 3.50 1.25 .50 #8 336-**.**
2.00 4.00 3.06 1.00 2.00 10.25 2.00 5.50 3.50 1.25 .50 #8 338-**.**
4.00 1.50 4.50 3.06 1.00 2.00 10.25 2.00 5.50 3.50 1.25 .50 #8 342-**.**
1.75 4.50 3.06 1.00 2.00 10.25 2.00 5.50 3.50 1.25 .50 #8 344-**.**
2.00 4.50 3.06 1.00 2.00 10.25 2.00 5.50 3.50 1.25 .50 #8 346-**.**
2.50 4.50 3.25 1.00 2.00 11.25 2.00 5.94 4.06 1.25 .50 #8 348-**.**
4.50 1.75 5.00 3.38 1.25 2.00 11.75 2.50 5.81 4.44 1.62 .75 #8 352-**.**
2.00 5.00 3.38 1.25 2.00 11.75 2.50 5.81 4.44 1.62 .75 #8 354-**.**
2.25 5.00 3.38 1.25 2.00 11.75 2.50 5.81 4.44 1.62 .75 #8 356-**.**
5.00 2.00 5.62 4.25 1.50 2.50 13.50 3.00 6.69 5.31 2.12 1.00 #8 360-**.**
2.50 5.62 4.25 1.50 2.50 13.75 3.00 6.94 5.31 2.12 1.00 #8 362-**.**
3.00 5.62 4.25 1.50 2.50 13.75 3.00 6.94 5.31 2.12 1.00 #8 364-**.**

Ordering Information

All Pre-engineered Cylinders are manufactured in the U.S.A. and are backed by the Aggressive Hydraulics Cylinder Warranty.

  • To complete part#; replace (**.**) with stroke required
  • Maximum allowable stroke length for a given model is dependent on the actual maximum operating pressure and compressive load. Buckling strength limit for a cylinder will be calculated at the time of initial order or upon customer request.
  • Other port sizes and locations are available upon request
  • Consult factory for longer stroke and or higher pressure applications
