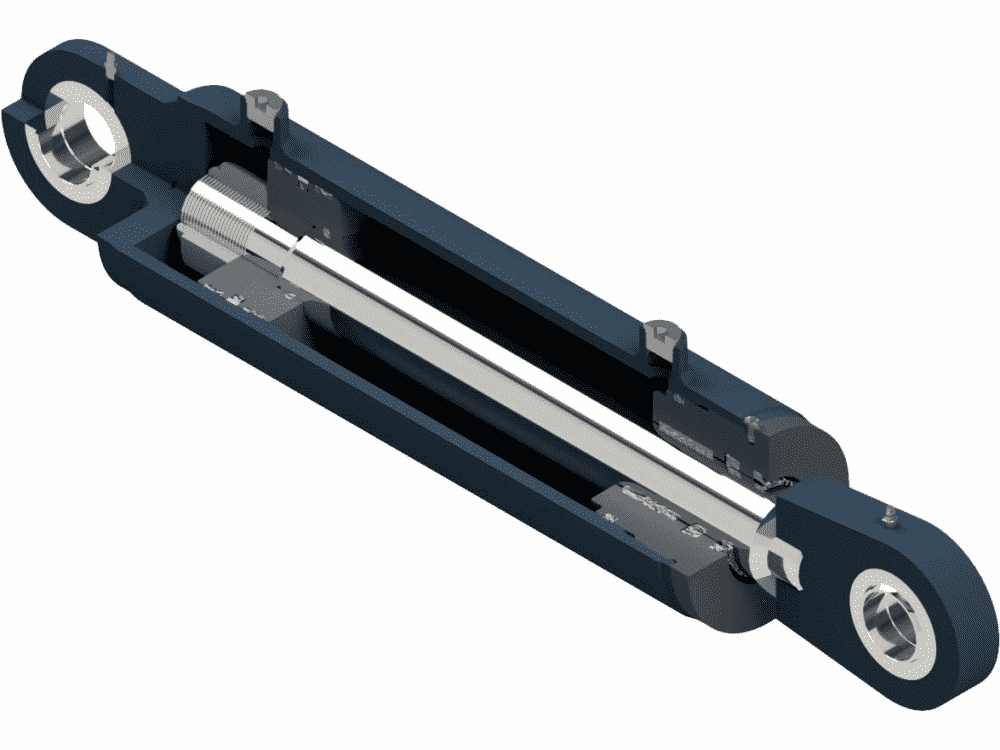

900 Series Cylinder Rendering

900 Series Cylinder Features



  • Spherical Bearings mounts on both ends for proper alignment
  • 3000 PSI Heavy Duty Type
  • Cold drawn (high impact) 75,000 min.yield D.O.M. tubing
  • Ground & polished, hard chrome plated rods (75,000 min. yield)
  • Welded style construction certified to A.W.S. B2.1
  • Internally threaded head design with buttress threads
  • Highest quality seal configurations compatible with petroleum base fluids
  • Increased bearing length on both head & piston
  • Ductile iron head gland & piston
  • Piston utilizes wear bearings
  • Nylon inserted lock nut
  • Standard paint; black primer

Pre-Engineered Hydraulic Cylinder Configurations

900 Series Cylinders Diagram

Bore Rod A B CD E F G H I J K L M Part #
3.00 1.75 3.50 3.81 1.250 2.00 12.50 1.50 6.19 3.94 1.093 .94 #6 2.00 904-**.**
2.00 3.50 3.81 1.250 2.00 12.50 1.50 6.19 3.94 1.093 .94 #6 2.00 906-**.**
3.50 1.75 4.00 3.94 1.250 2.00 12.75 1.50 6.38 4.00 1.093 .94 #8 2.00 910-**.**
2.00 4.00 3.75 1.250 2.00 12.75 1.50 6.19 4.19 1.093 .94 #8 2.00 912-**.**
4.00 2.00 4.62 4.00 1.500 2.50 14.25 1.88 7.06 4.81 1.312 1.12 #8 2.25 916-**.**
2.50 4.62 4.00 1.500 2.50 14.25 1.88 7.06 4.81 1.312 1.12 #8 2.25 918-**.**
3.00 4.62 4.12 1.500 2.50 15.00 1.88 7.94 5.06 1.312 1.12 #8 2.25 920-**.**
4.50 2.00 5.12 4.00 1.500 2.50 14.50 1.88 7.12 5.00 1.312 1.12 #10 2.25 924-**.**
2.50 5.12 4.00 1.500 2.50 14.75 1.88 7.12 5.25 1.312 1.12 #10 2.25 926-**.**
3.00 5.12 4.00 1.500 2.50 14.75 1.88 7.12 5.25 1.312 1.12 #10 2.25 928-**.**
3.50 5.12 4.00 1.500 2.50 15.00 1.88 7.88 5.12 1.312 1.12 #10 2.25 930-**.**
5.00 2.00 5.62 4.50 1.750 2.50 14.75 2.00 7.44 4.94 1.531 1.31 #12 2.50 934-**.**
2.50 5.62 4.62 1.750 2.50 15.75 2.00 8.00 5.19 1.531 1.31 #12 2.50 936-**.**
3.00 5.62 4.62 1.750 2.50 15.75 2.00 8.00 5.19 1.531 1.31 #12 2.50 938-**.**
3.50 5.62 4.50 1.750 2.50 15.50 2.00 7.88 5.06 1.531 1.31 #12 2.50 940-**.**
4.00 5.62 4.62 1.750 2.50 15.75 2.00 8.56 5.19 1.531 1.31 #12 2.50 942-**.**
5.50 2.50 6.12 4.69 1.750 2.50 16.00 2.00 8.06 5.25 1.531 1.31 #12 2.50 946-**.**
3.00 6.12 4.56 1.750 2.50 15.75 2.00 7.94 5.12 1.531 1.31 #12 2.50 948-**.**
3.50 6.12 4.56 1.750 2.50 15.75 2.00 7.94 5.12 1.531 1.31 #12 2.50 950-**.**
4.00 6.12 4.69 1.750 2.50 16.00 2.00 8.06 5.25 1.531 1.31 #12 2.50 952-**.**
4.50 6.12 4.56 1.750 2.50 16.50 2.00 8.50 5.88 1.531 1.31 #12 2.50 954-**.**
6.00 2.50 6.75 4.88 2.000 2.75 16.50 2.38 8.25 5.56 1.750 1.50 #12 2.75 958-**.**
3.00 6.75 4.75 2.000 2.75 16.25 2.38 8.12 5.44 1.750 1.50 #12 2.75 960-**.**
3.50 6.75 4.75 2.000 2.75 16.25 2.38 8.12 5.44 1.750 1.50 #12 2.75 962-**.**
4.00 6.75 4.88 2.000 2.75 16.50 2.38 8.25 5.56 1.750 1.50 #12 2.25 964-**.**
7.00 2.50 8.00 5.69 2.500 3.25 18.50 3.00 9.62 6.00 2.188 1.88 #16 3.25 968-**.**
3.00 8.00 5.69 2.500 3.25 18.50 3.00 9.62 6.00 2.188 1.88 #16 3.25 970-**.**
3.50 8.00 5.69 2.500 3.25 18.50 3.00 9.62 6.00 2.188 1.88 #16 3.25 972-**.**
4.00 8.00 5.56 2.500 3.25 19.00 3.00 9.50 6.62 2.188 1.88 #16 3.25 974-**.**
8.00 3.50 9.00 6.50 3.000 4.25 22.25 3.75 10.69 7.69 2.625 2.25 #16 4.25 978-**.**
4.00 9.00 6.50 3.000 4.25 22.25 3.75 10.69 7.69 2.625 2.25 #16 4.25 980-**.**
4.50 9.00 6.50 3.000 4.25 22.25 3.75 10.69 7.69 2.625 2.25 #16 4.25 982-**.**

Pre-Engineered Cylinder Drawing Program

Instantly customize and print detailed prints of our 900 Series Pre-Engineered Cylinders.

Try It Now

Ordering Information

All Pre-engineered Cylinders are manufactured in the U.S.A. and are backed by the Aggressive Hydraulics Cylinder Warranty.

  • To complete part#; replace (**.**) with stroke required
  • Maximum allowable stroke length for a given model is dependent on the actual maximum operating pressure and compressive load. Buckling strength limit for a cylinder will be calculated at the time of initial order or upon customer request.
  • Other port sizes and locations are available upon request
  • Consult factory for longer stroke and or higher pressure applications
