Double-Acting Telescopic (DAT) Hydraulic Cylinder Calculator
Browse:
Home
Resources & Configurators for Hydraulic Cylinders
Hydraulic Cylinder Calculators
Double-Acting Telescopic (DAT) Hydraulic Cylinder Calculator
This calculator takes a few seconds to load, but in the end is much faster than manual calculations.
Loading...
"
*
" indicates required fields
1
Configure
2
Details
3
Request
Your Cylinder

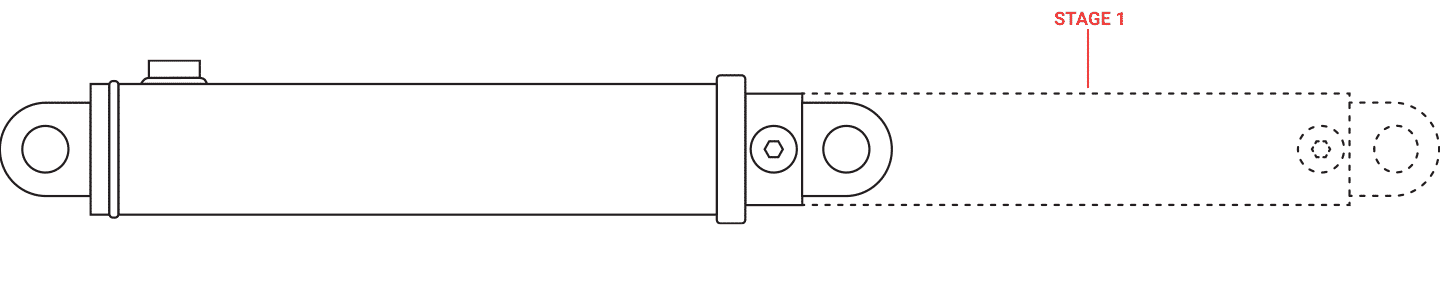

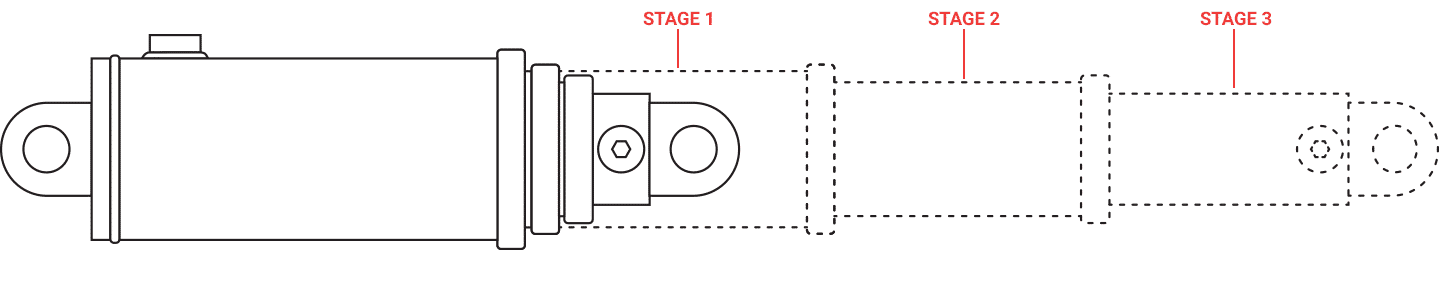

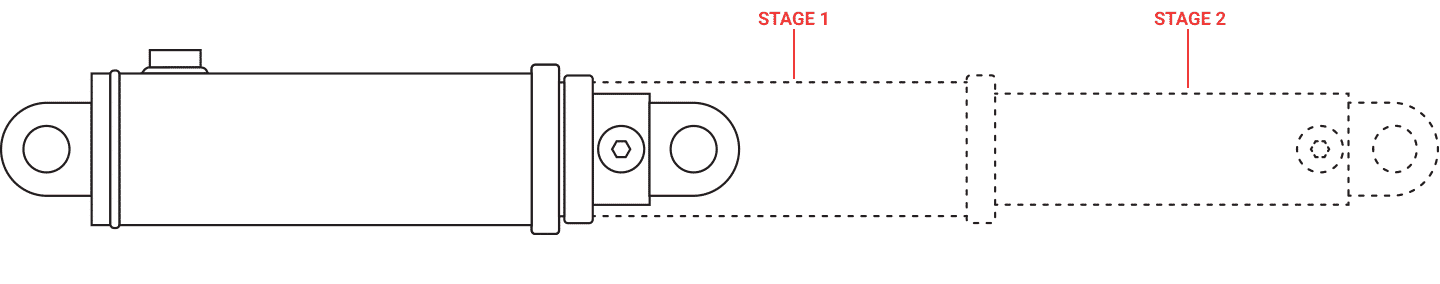

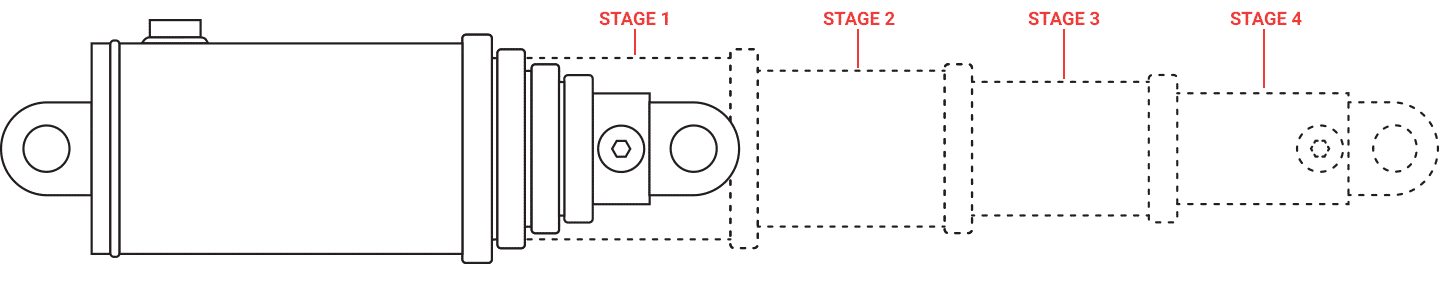

Number of Moving Stages
*
2
3
4
5
Total Stroke (in)
*
Pressure (PSI)
*
Flow (GPM)
*
Outside Diameter (OD) of Moving Stages (in)
Be sure that each stage is smaller than the previous stage. Stage 1 is the largest stage.
Stage 1 - OD of Moving (in) (Largest Stage)
*
Stage 2 - OD of Moving (in)
*
Stage 3 - OD of Moving (in)
*
Stage 4 - OD of Moving (in)
*
Stage 5 - OD of Moving (in)
*
Inside Diameter (ID) of Previous Stages (in)
Be sure that each stage is smaller than the previous stage. Main barrel is the largest ID.
Main Barrel - ID (in)
*
This value should be greater than the Stage 1 OD from above.
Stage 1 - ID of Previous (in)
*
This value should be greater than the Stage 2 OD from above.
Stage 2 - ID of Previous (in)
*
This value should be greater than the Stage 3 OD from above.
Stage 3 - ID of Previous (in)
*
This value should be greater than the Stage 4 OD from above.
Stage 4 - ID of Previous (in)
*
This value should be greater than the Stage 5 OD from above.
Approximate Stroke per Stage (in)
Stage 1 - Approximate Stroke (in)
Stage 2 - Approximate Stroke (in)
Stage 3 - Approximate Stroke (in)
Stage 4 - Approximate Stroke (in)
Stage 5 - Approximate Stroke (in)
Total - Stroke (in)
Extend Area (in²)
Stage 1 - Extend Area (in²)
Stage 2 - Extend Area (in²)
Stage 3 - Extend Area (in²)
Stage 4 - Extend Area (in²)
Stage 5 - Extend Area (in²)
Approximate Extend Volume (in³)
Stage 1 - Extend Volume (in³)
Stage 2 - Extend Volume (in³)
Stage 3 - Extend Volume (in³)
Stage 4 - Extend Volume (in³)
Stage 5 - Extend Volume (in³)
Total - Extend Volume (in³)
Approximate Extend Volume (gal)
Stage 1 - Extend Volume (gal)
Stage 2 - Extend Volume (gal)
Stage 3 - Extend Volume (gal)
Stage 4 - Extend Volume (gal)
Stage 5 - Extend Volume (gal)
Total - Extend Volume (gal)
Extend Time (sec)
Stage 1 - Extend Time (sec)
Stage 2 - Extend Time (sec)
Stage 3 - Extend Time (sec)
Stage 4 - Extend Time (sec)
Stage 5 - Extend Time (sec)
Total - Extend Time (sec)
Extend Rate (in/sec)
Stage 1 - Extend Rate (in/sec)
Stage 2 - Extend Rate (in/sec)
Stage 3 - Extend Rate (in/sec)
Stage 4 - Extend Rate (in/sec)
Stage 5 - Extend Rate (in/sec)
Extend Force (lbs)
Stage 1 - Extend Force (lbs)
Stage 2 - Extend Force (lbs)
Stage 3 - Extend Force (lbs)
Stage 4 - Extend Force (lbs)
Stage 5 - Extend Force (lbs)
Retract Area (in²)
Stage 1 - Retract Area (in²)
Stage 2 - Retract Area (in²)
Stage 3 - Retract Area (in²)
Stage 4 - Retract Area (in²)
Stage 5 - Retract Area (in²)
Approximate Retract Volume (in³)
Stage 1 - Retract Volume (in³)
Stage 2 - Retract Volume (in³)
Stage 3 - Retract Volume (in³)
Stage 4 - Retract Volume (in³)
Stage 5 - Retract Volume (in³)
Total - Retract Volume (in³)
Approximate Retract Volume (gal)
Stage 1 - Retract Volume (gal)
Stage 2 - Retract Volume (gal)
Stage 3 - Retract Volume (gal)
Stage 4 - Retract Volume (gal)
Stage 5 - Retract Volume (gal)
Total - Retract Volume (gal)
Retract Time (sec)
Values are theoretical; actual retract rates are often limited by return fluid pressure drop due to high cylinder ratio.
Stage 1 - Retract Time (sec)
Stage 2 - Retract Time (sec)
Stage 3 - Retract Time (sec)
Stage 4 - Retract Time (sec)
Stage 5 - Retract Time (sec)
Total - Retract Time (sec)
Retract Rate (in/sec)
Values are theoretical; actual retract rates are often limited by return fluid pressure drop due to high cylinder ratio.
Stage 1 - Retract Rate (in/sec)
Stage 2 - Retract Rate (in/sec)
Stage 3 - Retract Rate (in/sec)
Stage 4 - Retract Rate (in/sec)
Stage 5 - Retract Rate (in/sec)
Retract Force (lbs)
The overall cylinder retract force is limited to the lowest retract force by stage.
Stage 1 - Retract Force (lbs)
Stage 2 - Retract Force (lbs)
Stage 3 - Retract Force (lbs)
Stage 4 - Retract Force (lbs)
Stage 5 - Retract Force (lbs)
Area Ratio
Stage 1 - Area Ratio
Stage 2 - Area Ratio
Stage 3 - Area Ratio
Stage 4 - Area Ratio
Stage 5 - Area Ratio
Flow Out During Extend (gpm)
Stage 1 - Flow Out During Extend
Stage 2 - Flow Out During Extend
Stage 3 - Flow Out During Extend
Stage 4 - Flow Out During Extend
Stage 5 - Flow Out During Extend
Flow Out During Retract (gpm)
Stage 1 - Flow Out During Retract
Stage 2 - Flow Out During Retract
Stage 3 - Flow Out During Retract
Stage 4 - Flow Out During Retract
Stage 5 - Flow Out During Retract
Cycle Time (sec) (Total of extend time and retract time)
Values are theoretical; actual retract rates are often limited by return fluid pressure drop due to high cylinder ratio.
Total - Cycle Time
