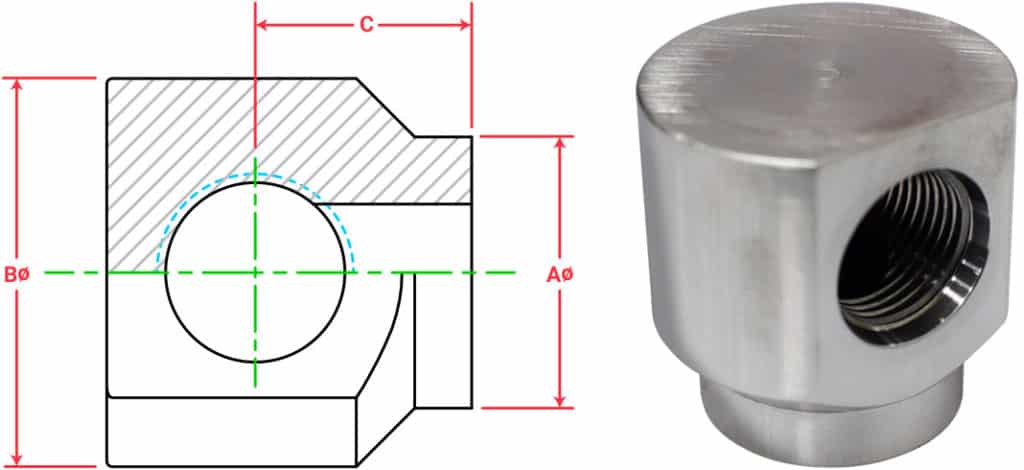

90 Degree O-Ring Boss Port for Hydraulic Cylinders
- Material: CD 1020
- Weldable
Part Numbers & Specifications
Part Number | Port Size | A | B | C | D | ||
---|---|---|---|---|---|---|---|
6500006004 | #4 SAE | 0.75 | 1.12 | 0.75 | 1.12 | ||
6500006006 | #6 SAE | 0.88 | 1.25 | 0.81 | 1.25 | ||
6500006008 | #8 SAE | 1.25 | 1.62 | 1.00 | 1.62 | ||
6500006010 | #10 SAE | 1.25 | 1.75 | 1.12 | 1.88 | ||
6500006012 | #12 SAE | 1.50 | 2.12 | 1.19 | 2.00 | ||
6500006016 | #16 SAE | 1.50 | 2.25 | 1.25 | 2.38 |
