Nylon Insert Lock Nuts for Hydraulic Cylinders
- Grade 5
- Plain (no-finish)
- Also called non-metallic insert lock nuts or nylon nuts

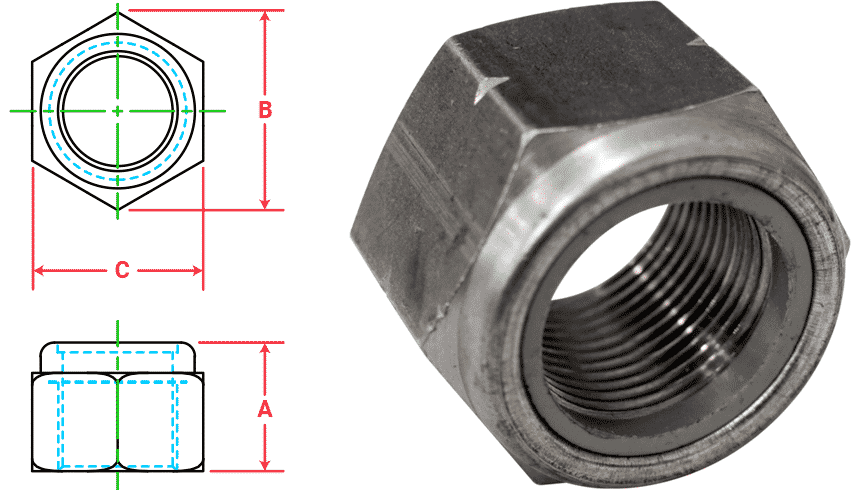

Part Numbers & Specifications
| Part Number | Thread Size | A | B | C | ||
|---|---|---|---|---|---|---|
| 4503816044 | 3/8″-16 | 0.44 | 0.55 | 0.63 | ||
| 4504414044 | 7/16″-14 | 0.44 | 0.62 | 0.69 | ||
| 4505020062 | 1/2″-20 | 0.56 | 0.75 | 0.81 | ||
| 4506218075 | 5/8″-18 | 0.75 | 0.93 | 1.06 | ||
| 4507516088 | 3/4″-16 | 0.88 | 1.06 | 1.19 | ||
| 4508814100 | 7/8″-14 | 1.00 | 1.25 | 1.38 | ||
| 4510014056 | 1″-14 | 0.56 | 1.43 | 1.65 | ||
| 4510014088 | 1″-14 | 0.88 | 1.62 | 1.81 | ||
| 4510014106 | 1″-14 | 1.06 | 1.44 | 1.62 | ||
| 4511212119 | 1-1/8″-12 | 1.19 | 1.62 | 1.81 | ||
| 4512512138 | 1-1/4″-12 | 1.38 | 1.81 | 2.06 | ||
| 4515012081 | 1-1/2″-12 | 0.81 | 2.19 | 2.51 | ||
| 4515012131 | 1-1/2″-12 | 1.31 | 2.38 | 2.62 | ||
| 4515012162 | 1-1/2″-12 | 1.62 | 2.19 | 2.44 | ||
| 4517512150 | 1-3/4″-12 | 1.50 | 2.75 | 3.06 | ||
| 4520012162 | 2″-12 | 1.62 | 3.12 | 3.50 | ||
| 4522512193 | 2-1/4″-12 | 1.93 | 3.50 | 3.93 | ||
| 4525012225 | 2-1/2″-12 | 2.25 | 4.00 | 4.38 | ||
| 4530012262 | 3″-12 | 2.62 | 4.49 | 4.96 |
