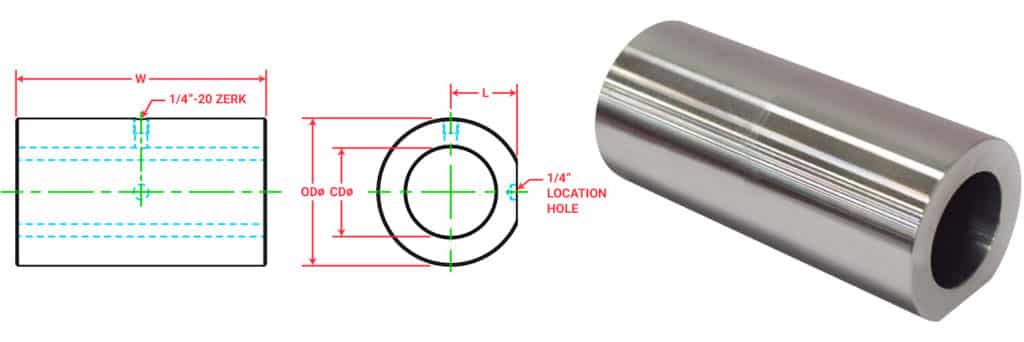

Cross Tube Mounts
- Material: 1026 CDS (Cold Drawn Seamless Mechanical Tubing)
- Drilled & Tapped for ¼”-28 Zerk (Grease) Fitting
- Drilled With ¼” Mounting Location Hole
Part Numbers & Specifications
| Part Number | CD | W | OD | L | ||
|---|---|---|---|---|---|---|
| 1230150712 | 0.75 | 1.50 | 1.25 | 0.56 | ||
| 1230200712 | 0.75 | 2.00 | 1.25 | 0.56 | ||
| 1230250712 | 0.75 | 2.50 | 1.25 | 0.56 | ||
| 1230300712 | 0.75 | 3.00 | 1.25 | 0.56 | ||
| 1230350712 | 0.75 | 3.50 | 1.25 | 0.56 | ||
| 1230251015 | 1.00 | 2.50 | 1.50 | 0.69 | ||
| 1230301015 | 1.00 | 3.00 | 1.50 | 0.69 | ||
| 1230351015 | 1.00 | 3.50 | 1.50 | 0.69 | ||
| 1230401015 | 1.00 | 4.00 | 1.50 | 0.69 | ||
| 1230451015 | 1.00 | 4.50 | 1.50 | 0.69 | ||
| 1230271017 | 1.00 | 2.75 | 1.75 | 0.81 | ||
| 1230321017 | 1.00 | 3.25 | 1.75 | 0.81 | ||
| 1230371017 | 1.00 | 3.75 | 1.75 | 0.81 | ||
| 1230421017 | 1.00 | 4.25 | 1.75 | 0.81 | ||
| 1230471017 | 1.00 | 4.75 | 1.75 | 0.81 | ||
| 1230521017 | 1.00 | 5.25 | 1.75 | 0.81 | ||
| 1230271220 | 1.25 | 2.75 | 2.00 | 0.88 | ||
| 1230301220 | 1.25 | 3.00 | 2.00 | 0.88 | ||
| 1230321220 | 1.25 | 3.25 | 2.00 | 0.88 | ||
| 1230371220 | 1.25 | 3.75 | 2.00 | 0.88 | ||
| 1230421220 | 1.25 | 4.25 | 2.00 | 0.88 | ||
| 1230451220 | 1.25 | 4.50 | 2.00 | 0.88 | ||
| 1230471220 | 1.25 | 4.75 | 2.00 | 0.88 | ||
| 1230521220 | 1.25 | 5.25 | 2.00 | 0.88 | ||
| 1230601220 | 1.25 | 6.00 | 2.00 | 0.88 | ||
| 1230701220 | 1.25 | 7.00 | 2.00 | 0.88 | ||
| 1230301525 | 1.50 | 3.00 | 2.50 | 1.12 | ||
| 1230401525 | 1.50 | 4.00 | 2.50 | 1.12 | ||
| 1230421525 | 1.50 | 4.25 | 2.50 | 1.12 | ||
| 1230471525 | 1.50 | 4.75 | 2.50 | 1.12 | ||
| 1230551525 | 1.50 | 5.50 | 2.50 | 1.12 | ||
| 1230601525 | 1.50 | 6.00 | 2.50 | 1.12 | ||
| 1230671525 | 1.50 | 6.75 | 2.50 | 1.12 | ||
| 1230701525 | 1.50 | 7.00 | 2.50 | 1.12 | ||
| 1230321727 | 1.75 | 3.25 | 2.75 | 1.25 | ||
| 1230471727 | 1.75 | 4.75 | 2.75 | 1.25 | ||
| 1230551727 | 1.75 | 5.50 | 2.75 | 1.25 | ||
| 1230601727 | 1.75 | 6.00 | 2.75 | 1.25 | ||
| 1230701727 | 1.75 | 7.00 | 2.75 | 1.25 | ||
| 1230352030 | 2.00 | 3.50 | 3.00 | 1.38 | ||
| 1230402030 | 2.00 | 4.00 | 3.00 | 1.38 | ||
| 1230472030 | 2.00 | 4.75 | 3.00 | 1.38 | ||
| 1230502030 | 2.00 | 5.00 | 3.00 | 1.38 | ||
| 1230552030 | 2.00 | 5.50 | 3.00 | 1.38 | ||
| 1230602030 | 2.00 | 6.00 | 3.00 | 1.38 | ||
| 1230702030 | 2.00 | 7.00 | 3.00 | 1.38 | ||
| 1230802030 | 2.00 | 8.00 | 3.00 | 1.38 |
