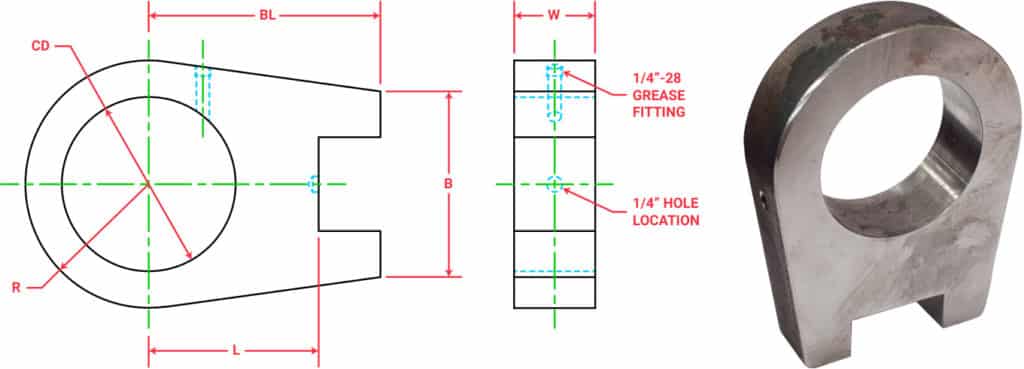

Spherical Tang (Rod End)
- Material: 50 KSI Min Yield Plate
- Drilled & Tapped for ¼”-28 Zerk (Grease) Fitting
- Drilled With ¼” Mounting Location Hole
| Part Number |
CD |
L |
R |
BL |
W |
B |
F |
G |
Nominal Bearing Hole Diameter |
Spherical Bearing |
Max. Pull # |
|
|
| 1212075100 |
1.625 |
2.12 |
1.25 |
2.75 |
0.75 |
0.50 |
2.00 |
1.015 |
1.00 |
9995000100 |
13,033 |
|
|
| 1212093125 |
2.000 |
2.25 |
1.50 |
3.00 |
0.93 |
0.50 |
2.25 |
1.265 |
1.25 |
9995000125 |
18,555 |
|
|
| 1212112150 |
2.437 |
2.50 |
1.88 |
3.25 |
1.12 |
0.63 |
3.00 |
1.515 |
1.50 |
9995000150 |
29,158 |
|
|
| 1212131175 |
2.812 |
2.75 |
2.00 |
3.75 |
1.31 |
0.88 |
3.00 |
1.515 |
1.75 |
9995000175 |
31,146 |
|
|
| 1212150200 |
3.188 |
3.00 |
2.38 |
4.00 |
1.50 |
0.88 |
3.50 |
2.015 |
2.00 |
9995000200 |
46,829 |
|
|
| 1212188250 |
3.937 |
3.50 |
3.00 |
4.75 |
1.88 |
1.25 |
4.50 |
2.515 |
2.50 |
9995000250 |
76,871 |
|
|
