Pre-Engineered Cylinder Drawing Program

Customize and print detailed drawings of our 100-900 Series Pre-Engineered Cylinders.

Instructions

  1. Select cylinder series (100-900).
    • 100 Series – 2,500 psi (No Mounts)
    • 200 Series – 2,500 psi (Cross Tube Mounts)

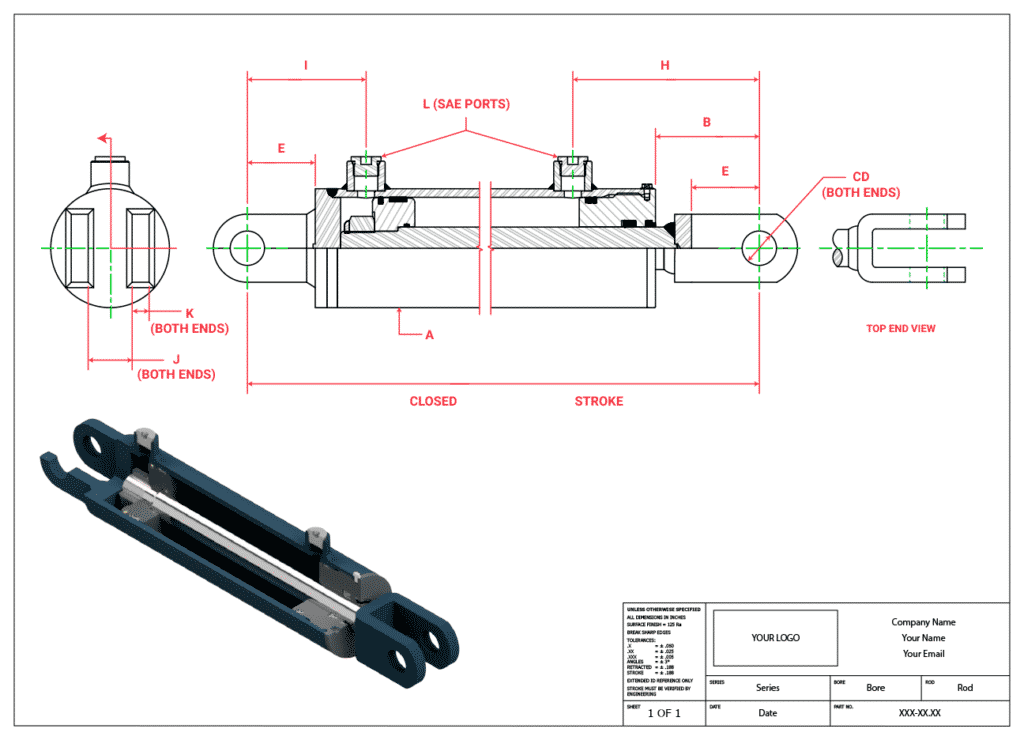

    • 300 Series – 2,500 psi (Clevis Mounts)
    • 400 Series – 2,500 psi (Lug Mounts)
    • 600 Series – 3,000 psi (No Mounts)
    • 700 Series – 3,000 psi (Cross Tube Mounts)

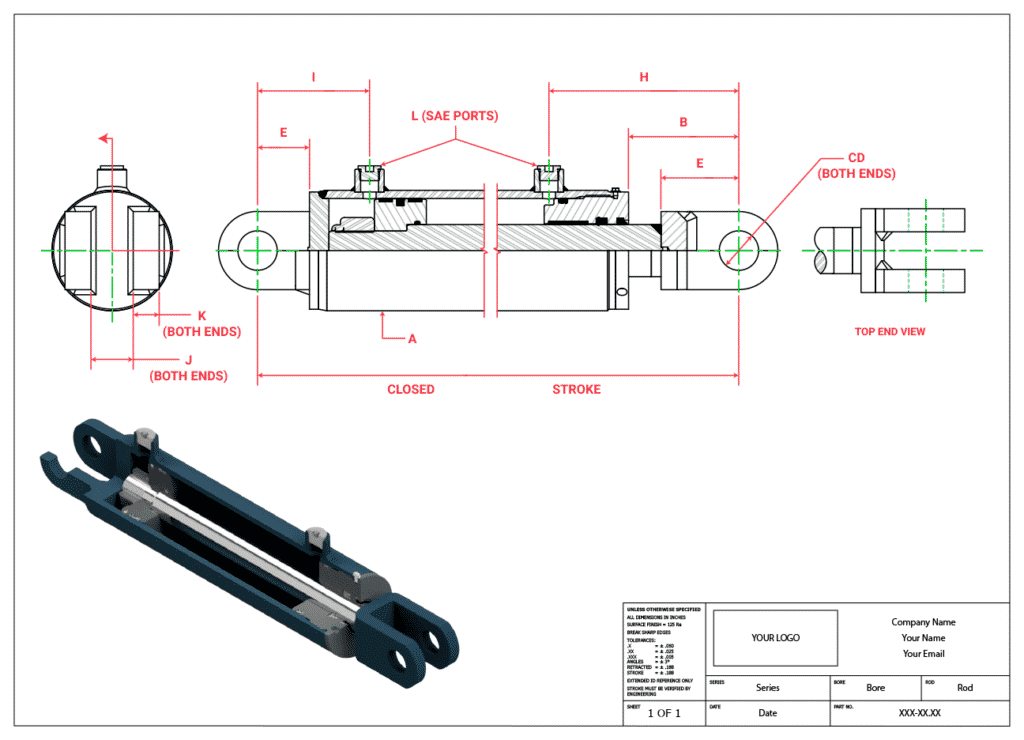

    • 800 Series – 3,000 psi (Clevis Mounts)
    • 900 Series – 3,000 psi (Spherical Bearing Mounts)
  2. Select bore and rod diameters.
  3. Enter the stroke length.
  4. Customize legend with company contact information.
  5. Enter Request For Quote options.
  6. Submit form and check your email for the pdf.
Series 100
Series 200
Series 300
Series 400
Series 600
Series 700
Series 800
Series 900
